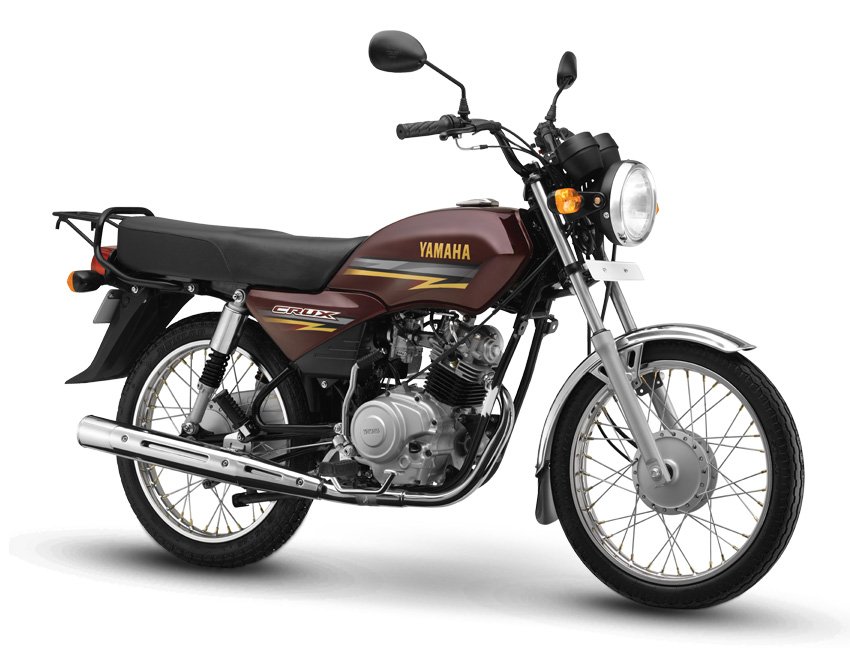

Yamaha 110cc Bike Crux

Engine

Engine type: Air Cooled, 4-stroke, SOHC, 2-valve
Displacement: 106 cc
Bore & Stroke: 49.0 × 56.0 mm
Compression ratio: 9.0:1
Maximum output: 7.6PS / 7,500 rpm
Maximum torque: 7.5N.m / 6,000 rpm
Starting system: Kick start
Lubrication: Wet sump
Cylinder layout: Single cylinder
Clutch type: Wet, multiple-disc
Ignition type: CDI
Primary / Secondary reduction ratio: 3.722 / 3.143
Gear box: 4-Speed Constant Mesh
Caster / Trail: 26° / 81mm
Gear ratios: 1st (3.000), 2nd (1.688), 3rd (1.200), 4th(0.875)

Chassis

Frame type: Double cradle
Suspension (Front/Rear): Telescopic / Swing arm
Brake Type (Front/Rear): Drum/Drum
Tyre size (Front/Rear): 2.50-18″ 4PR / 2.75 x 18″ 6PR

Electricals

Battery: 12 V, 2.5 AH(10H)
Headlight: Halogen bulb (12 V, 35W/35 W x 1)

Dimensions

Overall length x width x height: 2,000 mm x 735 mm × 1,075 mm
Kerb Weight: 113 kg
Seat Height: 780 mm
Wheelbase: 1,260 mm
Minimum ground clearance: 160 mm
Engine oil volume: 1.0 liters
Fuel tank volume: 11.0 litres
