YZF R1

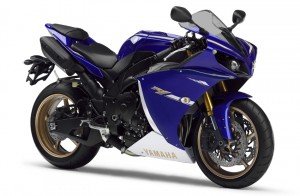

Yamaha 1000cc Powerful Bike YZF R1

Engine

Engine Type: Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement: 998cc
Bore & Stroke: 78.0×52.2 mm
Compression ratio: 12.7:1
Maximum output: 182.1PS/12,500 rpm
Maximum torque: 115.5 N.m/10,000rpm
Starting method: Electric start
Lubrication type: Wet Sump
Fuel Supply: Carburetor
Clutch type: Wet multiple-disc
Ignition system: T.C.I
Primary/secondary reduction ratio: 65/43 (1.512)- 47/17 (2.765)
Secondary reduction system: Chain drive
Transmission type: Consetant mesh, 6-speed
Cylinder layout: In-line 4-cylinder
Maximum Speed (crouched): 285km/h
Minimum turning radius: 3500 mm
Gear ratio: 1st gear=38/15 2.533, 2nd gear=33/16 2.063, 3rd gear=37/21 1.762, 4th gear=35/23 1.522, 5th gear=30/22 1.364, 6th gear=33/26 1.269

Chassis and Suspension

Chassis Frame type: Deltabox Frame
Suspension (front): Telescopic fork
Suspension (Rear): Swingarm
Final transmission: Chain

Brakes & Tyres

Wheel travel (front/rear): 120/120 mm
Brake type(front/rear): 310 /220 mm
Tyre size (front/rear): 120/70ZR17M/C(58W)/, 190/55ZR17M/C(75W)

Electrical

Battery: 12 V, 5 Ah10(10H)
Headlight: (12 V, 35/35 W+35W)
Radiator capacity(including all routes): 2.773 L
Air filter type: Paper
Spark plug model: CR9EK
Battery voltage/capacity: 12V, 8.6AH(10H)
Headlight bulb type: Halogen bulb
Headlight: 3312V, 55W ×2
Auxiliary light: 12V, W5W ×2
Brake/tail light: LED
Turn signal light(Front): 12V, 10.0 W ×2
Turn signal light(Rear):12V, 10.0 W ×2
Speedometer: LCD Digital
Tachometer: Analog
Odometer: LCD Digital
Trip meter: LCD Digital
Water temperature meter: LCD Digital
Clock: LCD Digital
Shock absorber assembly type(Front): Coil spring/oil damper
Shock absorber assembly type(Rear):Coil spring/gas-oil damper

Dimensions

Overall Length × Width × Height: 2,070mm x 715mm x 1,130mm
Seat height: 835 mm
Wheelbase: 1,415 mm
Minimum ground clearance: 135 mm
Kerb weight: 206 kg
Dry weight: 206 kg
Fuel tank volume: 18 liters
Engine oil volume: 3.7 liters
Caster /trail: 26 degree/ 100mm
