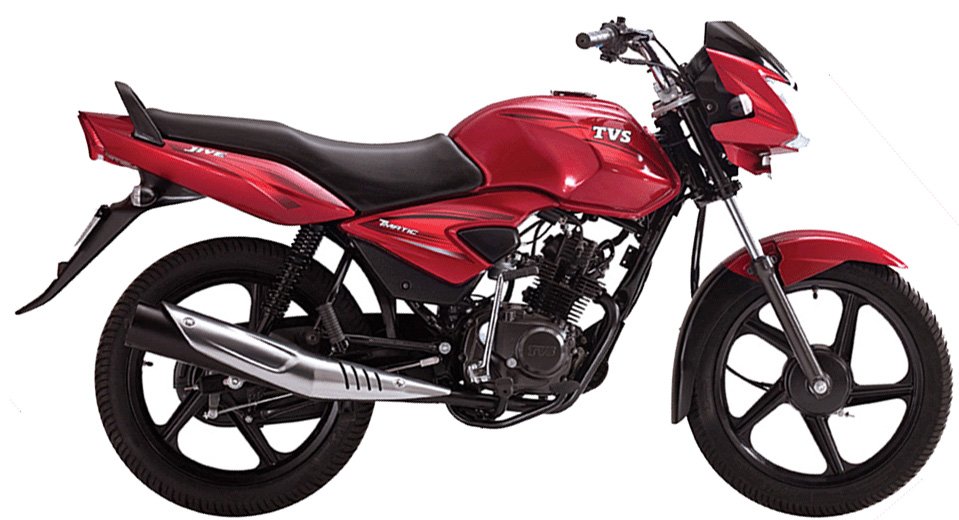

Tvs Jive 110 cc

Engine & Tranmission

Engine: 4-sroke,single cylinder, Air cooled
Displacement: 109.7cc
Maximum Power: 6.18 KW(8.4 Bhp) @ 7500 rpm
Maximum Torque: 8.3 Nm @ 5500 rpm
Gears: 4 Automatic
Clutch: Automatic
Bore: 53.5 mm
Stroke: 48.8 mm
No. of Cylinders: 1
Chassis Type: Single Cradle
Cooling Type: Air Cooling
Compresssion Ratio: 9.2:1
Starting: Kick Start & Electric

Suspension

Front: Inline Telescopic Suspension
Rear: Hydraulic twin shock absorver with coil spring

Brakes

Front/: Drum-130 mm
Rear: Drum-110 mm

Tyres

Front: 2.75*17
Rear: 3.00*17
Wheel Type: Alloys

Electricals

Head lamp: 12V, 35W/35W Halogen
Battery: 12V 5.0 Ah (ES)
Break lamp/Tail Lamp: 12V, 21W/5W
Horn: NA

Dimension

Length: 1975.00 mm
Width: 700.00 mm
Height: 1060.00 mm
Dry mass: 110.00 kg
Ground Clearance: 165.00 mm
Fuel Tank: 15.00 ltrs
Reserve: 2.7 litres
Wheelbase: 1260.00 mm
